Umumiy koʻrinish
Servo vosita chiqishi (tezlik, moment) kirish signaliga tezda javob beradigan qo'zg'atuvchini boshqarish motoriga ishora qiladi.
Ilova
Servo motorlar tez-tez tezlik sensorlari va joylashish elementlari bilan birlashtirilib, tezlikni yopiq{0}}palanka tizimlari va joylashuvi yopiq-aymoq tizimlarini hosil qiladi. DC servo motorlar aviatsiya servo tizimlarida, portativ elektron asboblarda, radar masofasini kuzatish tizimlarida, chiziqli kechikish moslamalarida, lenta drayvlarida, magnit yozuvchilari va robotlarida keng qo'llaniladi. AC servo motorlar turli xil avtomatik boshqaruv tizimlarida, servo tizimlarda va haydovchi qurilmalarda keng qo'llaniladi.

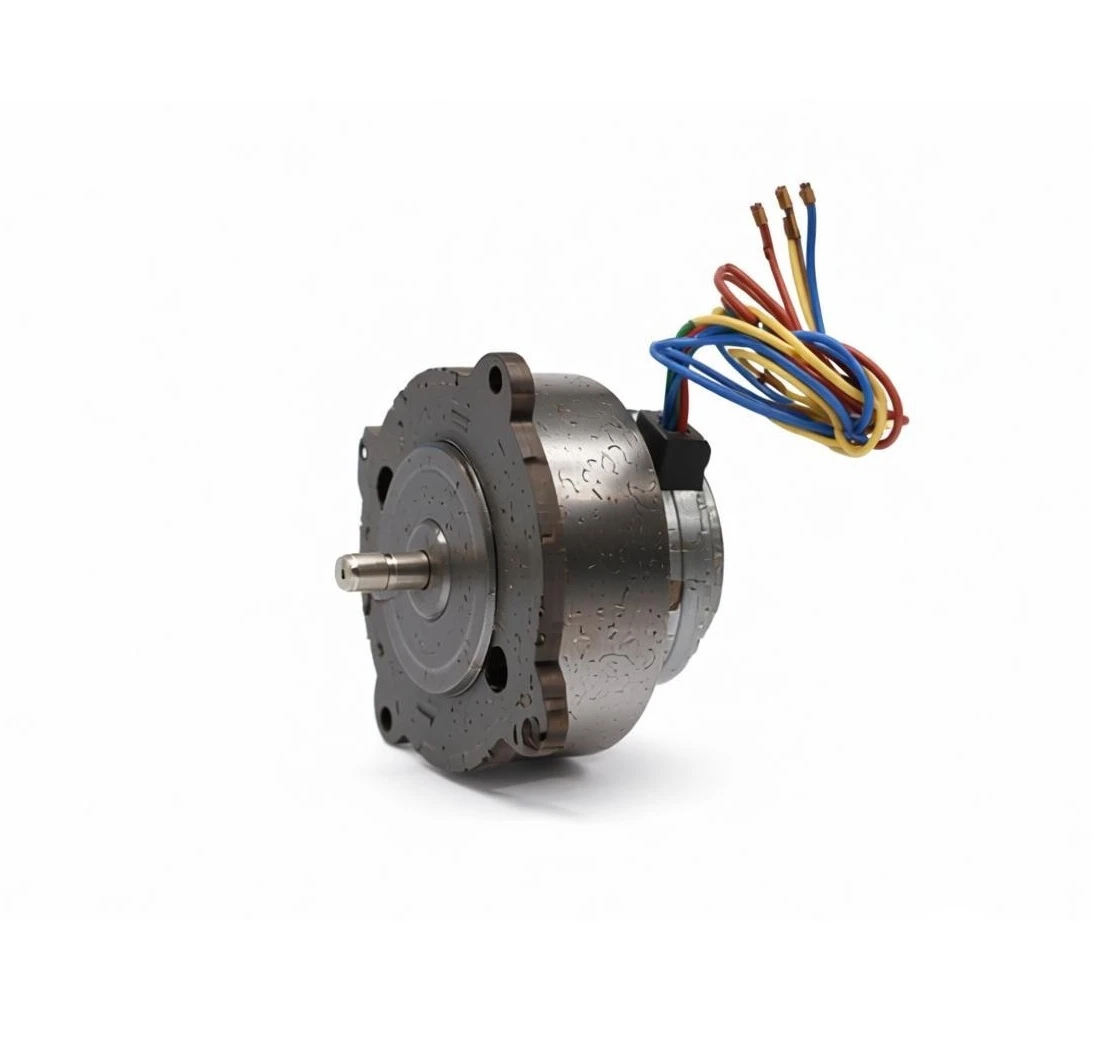

1.Doimiy magnit DC servo vosita
Oldinga va teskari ishga tushirish va servo nazorat qilish uchun mos keladigan kichik hajmli, engil vaznli, yaxshi boshqaruv ishlashi va yuqori moment indeksining afzalliklariga ega.
Texnik ma'lumotlar
|
Mahsulot modeli |
Nominal kuchlanish (V) |
Nominal tezlik (d/daq) |
Nominal moment (mNm) |
Nominal quvvat (Vt) |
|
J20SY01 |
27 |
4000 |
4 |
1.6 |
|
J25SY01 |
29 |
9000 |
3.4 |
3.23 |
|
J28SY0 |
27 |
9000 |
4.88 |
4.6 |
|
J36SY01 |
24 |
5500 |
21 |
12.4 |
|
J36SY02 |
28 |
500 |
21 |
12.4 |
|
J40SY01 |
27 |
6000 |
40 |
24.6 |
|
J40SY02 |
27 |
5150 |
115 |
62 |
|
J45SY01 |
28 |
1650 |
50 |
8.63 |
|
J45SY02 |
27 |
3000 |
68 |
20 |
|
J45SY03 |
27 |
6000 |
39 |
24 |
|
J45SY04 |
27 |
6000 |
39 |
24 |
|
J55SY01 |
27 |
6000 |
80 |
50 |
|
J60SY01 |
12 |
2500 |
78 |
20.5 |
|
J70SY01 |
12 |
2500 |
340 |
89.8 |
|
J90SY01 |
48 |
3000 |
480 |
150 |
|
J90SY02 |
40 |
850 |
390 |
34.9 |
|
J110SY01 |
200 |
4000 |
1080 |
450 |
2.Sinusoidal to'lqin doimiy magnit AC servo vosita
Texnik ma'lumotlar
|
Motor modeli |
Birlik |
J70ST - X01 |
J92ST - X01 |
J115ST - X01 |
J142ST - X01 |
J190ST - X01 |
|
Quvvat |
(kVt) |
1.5 |
1.6 |
5.5 |
12.5 |
13.9 |
|
Maksimal ish tezligi |
(d/daq) |
7500 |
3600 |
3200 |
4300 |
2000 |
|
Uzluksiz to'xtash momenti (25 daraja) |
(Nm) |
2.4 |
4.7 |
19.7 |
41.5 |
83.4 |
|
Uzluksiz to'xtash chizig'i oqimi |
(A) |
6 |
5.8 |
19.1 |
60 |
48 |
|
Eng yuqori moment |
(Nm) |
6.4 |
14 |
50 |
104 |
230 |
|
Eng yuqori chiziq oqimi |
(A) |
18 |
17.4 |
53.3 |
114.8 |
147 |
|
Moment sezgirligi |
(Nm/A) |
0.37 |
0.85 |
0.98 |
0.79 |
1.65 |
|
Orqaga EMF doimiy |
(V/kr/min) |
22.5 |
51.2 |
58.8 |
47.9 |
99.6 |
|
Maksimal chiziq kuchlanishi |
(V) |
250 |
250 |
250 |
250 |
250 |
|
Aylanma inertsiya |
(kgm²) |
7.7E-05 |
1.1E-03 |
6.6E-03 |
1.4E-02 |
6.0E-02 |
|
Joylashuv momenti |
(Nm) |
0.07 |
0.01 |
0.287 |
0.52 |
0.91 |
|
Tashqi o'lchamlar |
(□mm×mm) |
70×244 |
92×336 |
115×473 |
142×460 |
190×539 |
3.Kvadrat to'lqinli doimiy magnit cho'tkasiz servo vosita
Texnik ma'lumotlar
|
Motor modeli |
Nominal quvvat (kVt) |
To'xtash momenti (N·m) |
Maksimal tezlik (d/daq) |
Taxometr (V/Kr/min) |
Kodlovchi (p/r) |
|
J80ZWS-C01 |
0.8 |
5 |
1800 |
10 |
- |
|
J98ZWS-01 |
- |
0.15 |
6000 |
- |
2400 |
|
J100ZWS-01 |
- |
0.15 |
6000 |
- |
2400 |
|
J100ZWS-01A |
0.7 |
2 |
4000 |
- |
- |
|
J100ZWS-C01 |
0.7 |
2 |
4000 |
20 |
- |
|
J115ZWS-01A |
1.2 |
2 |
6000 |
- |
- |
|
J115ZWS-C01 |
1.2 |
10.4 |
1100 |
20 |
- |
|
J115ZWS-CM01 |
1.1/1.4 |
6.5/9 |
2000 |
20 |
2500 |
|
J115ZWS-CM02 |
0.4/0.6 |
2.2/3.6 |
2000 |
20 |
2500 |
|
J140ZWS-C01 |
2.5 |
- |
1100 |
20 |
- |
|
J140ZWS-CM01 |
2.4 |
14 |
2000 |
20 |
2000 |
|
J140ZWS-CM02 |
2.2 |
30 |
1000 |
20 |
2500 |
|
J140ZWS-CM03 |
4.5 |
30 |
2000 |
20 |
2500 |
|
J190ZWS-C01 |
15 |
70 |
3000 |
20 |
- |
|
J190ZWS-C02 |
15 |
32.5 |
6000 |
15 |
- |
|
J190ZWS-C03 |
7.5 |
47.7 |
1500 |
20 |
- |
SHINHOM bizning sohamizda magnit texnologiyalarni integratsiyalashgan yoki ishlatadigan sohalar uchun yuqori darajadagi mukammallikni o'rnatishga bag'ishlangan.Servo motormahsulotlar.
